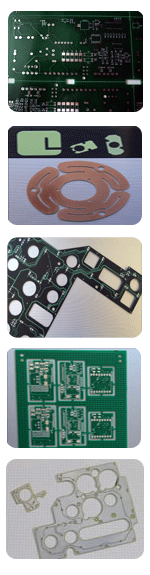

Sample Panels



PCB Design, Component Procurement & PCB Assembly (PCBA)

At Chiltern Circuits we are able to help you with more than simply manufacturing your bare printed circuit boards (PCBs)

Design
The design of your PCB is arguably one of the most important stages in the manufacture of your final product. If the design isn't correct then your circuit board won't function as you intended it to resulting in increased costs and wasted time. We, at Chiltern Circuits, are able to take care of your design needs, whether it be a simple single sided board or something more complex. Our experienced designers work efficiently and often spot mistakes before prototypes are even manufactured making the process more proficient. If you have a old PCB but no gerber files we are able to reverse engineer it and supply you with a set of gerber files which we can then use to manufacture the bare board.

Procurement
The procurement of components can often be a time consuming process, having to coordinate different suppliers simultaneously and trying hard to track down the piece of the puzzle. Our time in the electronics business has led to a large number of contacts within many industries including kitting and procurement of components. We have strong relationships with suppliers and are able to offer quality value procurement on your behalf. Why not send us your BOM today and see how we can help?

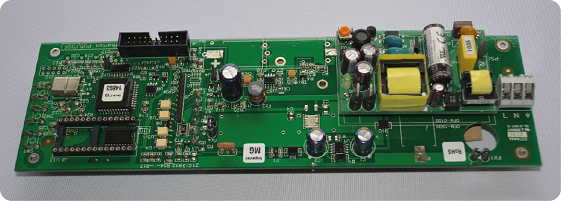

Assembly
Whether you require surface mount, pick and place or hand soldering, we can also take care of your assembly requirements. Our carefully selected sub contractors all have years of experience and a long track record so you can be assured of good quality workmanship, delivered on time and on budget. If you prefer to free issue components then we are happy for you to do so. We are able to advise on the most cost effective options available to you make the process much easier for you, why deal with multiple companies with numerous contacts when you can just speak to us?
Please contact Steve Dear for a highly competitive quotation, further information or advice.
